Getting to the Root of the Matter

Contributed by Lucas M. Donovan1, Ken He2, Margaret Wardlaw1, Vishesh K. Kapur1 1University of Washington, Seattle, WA; 2VA Puget Sound Health Care System, Seattle, WA Corresponding Author: Lucas M. Donovan, MD University of Washington Division of Pulmonary, Critical Care, and Sleep Medicine 1959 NE Pacific Street Seattle, WA 98105 ldonovan@u.washington.edu Author Contributions: Interpretation of data and preparation of the manuscript: L.M.D., K.H., M.W., and V.K.K. Support: NIH grant T32HL007287-38. The views expressed here are those of the authors and do not necessarily reflect the position or policy of the Department of Veterans Affairs. None of the funding sources was involved in the design, conduct or analysis of this project.

Case Vignette

A 54 year-old man was referred for split-night polysomnography due to snoring and excessive daytime sleepiness. His past medical history was notable for atrial fibrillation and type 2 diabetes mellitus. His physical exam was notable for class 3 obesity with a body mass index of 51 kg/m2, and Mallampati class 3 airway.

On polysomnography, he met split night criteria after 2 hours of diagnostic sleep time. During the diagnostic portion of the study, the patient displayed very severe obstructive sleep apnea with a 4% apnea-hypopnea index of 112 events per hour. During continuous positive airway pressure (CPAP) titration using a nasal interface, the following epoch (Figure 1) was recorded at a CPAP pressure of 10 cm H2O.



Figure 1

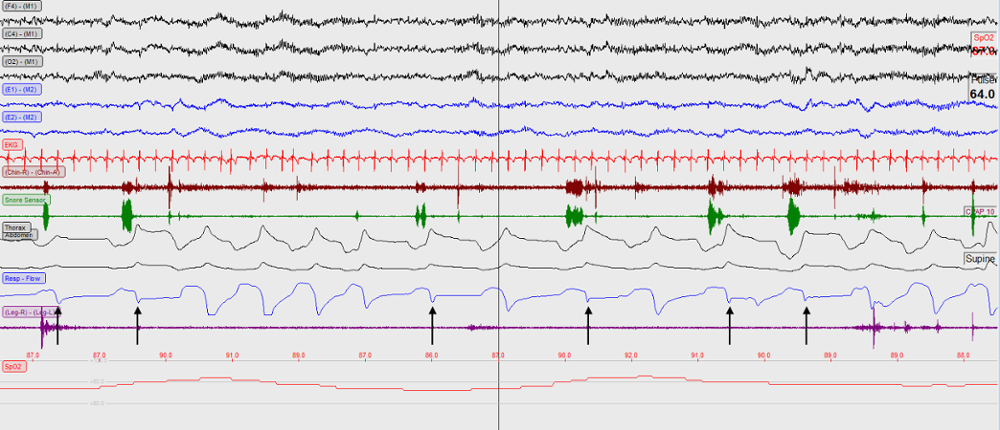

Figure 1: Sixty second epoch from titration portion of the study with 10 cm of continuous positive airway pressure using a nasal mask. Breaths of interest are marked with upward black arrows.



Questions

  1. What is notable about the expiratory limb of the CPAP airflow waveform as shown in Figure 1?

  2. What are potential remedies that can be employed?

Discussion

During positive airway pressure (PAP) titration, loss of a portion of the expiratory limb of the PAP waveform was seen, resulting in a pattern resembling the square root symbol. The “square root sign” observed in this case occurred because oral leak limited expiratory airflow from reaching the CPAP flow sensor. To appreciate oral leak on flow waveforms, it is essential that one is confident in the accurate orientation of the flow signal relative to inspiration and expiration. This can be achieved by examining biocalibrations, observing characteristics typically seen during inspiration (inspiratory flow limitation and snoring), and noting the steep downslope on expiration seen when flow signal is oriented with inspiration as an upward deflection.

In our experience, the “square root sign” is frequently associated with oral leak. In this case, we were confident that this was oral leak due to the sleep technologist’s observation of oral leak as well as video confirmation of an open mouth. Our experience illustrates that the detection of expiratory leak often requires vigilance and a high degree of suspicion on the part of the technician. A thermistor placed in front of the patient’s mouth may also help detect mouth breathing during CPAP titration with a nasal interface.

Oral leak is a common complication of positive airway pressure therapy delivered via a nasal mask for obstructive sleep apnea. It results in diversion of effective pressure, and in turn can cause oral dryness, reduce the efficacy of PAP therapy, and disrupt sleep.(1) Moreover, failure to recognize oral leak may result in overtitration.

In a population of patients with oral leak, chinstrap use was associated with reduced leak, increased PAP adherence, and reduced frequency of obstructive events.(2) The use of an oronasal mask is another option supported by American Academy of Sleep Medicine Practice Parameters.(3) Enthusiasm for oronasal masks is tempered somewhat by greater mask leak compared to nasal masks in a randomized crossover trial,(4) and greater adherence to PAP therapy with nasal versus oronasal masks.(5) Ultimately, mask selection and chinstrap use is an individualized decision that is best made after taking patient preferences and comfort into account.

There is also a bidirectional relationship between oral leak and increased nasal resistance, with nasal resistance contributing to mouth breathing,(6) and oral leak increasing nasal resistance.(7) Therefore, efforts to reduce nasal resistance, including nasal dilators and decongestants(6) may be helpful in reducing oral leak.

Answers

1) What is notable about the expiratory limb of the CPAP airflow waveform as shown in Figure 1?

Figure 1 demonstrates a loss of a portion of the expiratory limb of the CPAP airflow waveform, indicating expiratory leak and results in a pattern that approximates the square root symbol.

2) What are potential remedies that can be employed?

Mask adjustment or replacement should be considered for expiratory leak originating from the skin-mask interface. In the presence of expiratory leak due to oral leak, a chinstrap can be applied to maintain mouth closure, although the use of an oronasal mask can be a potentially effective alternative.

Follow-Up

After oral leak was effectively treated, some flow limitation remained as seen on the inspiratory portion of several breaths in Figure 2. After CPAP was increased from 10 to 18 cm H2O, flow limitation and oxygenation improved (Figure 3).



Figure 2

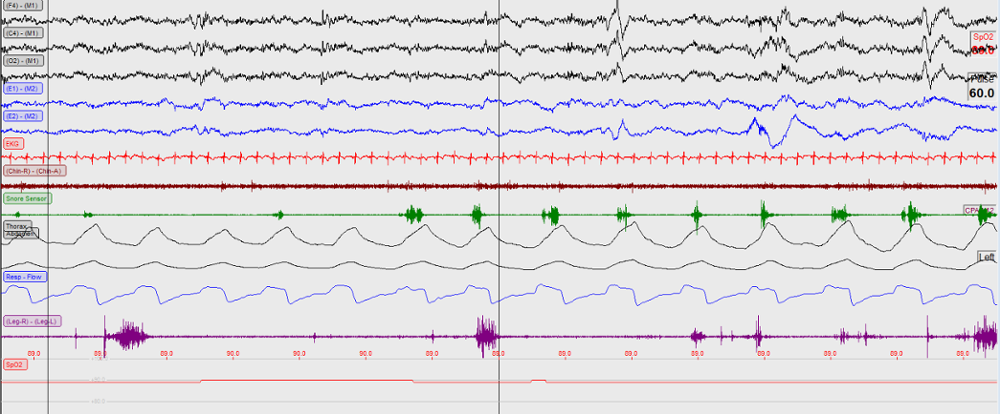

Figure 2: Sixty second epoch from titration portion of the study with 12 cm of continuous positive airway pressure using a nasal mask and chinstrap.



Figure 3

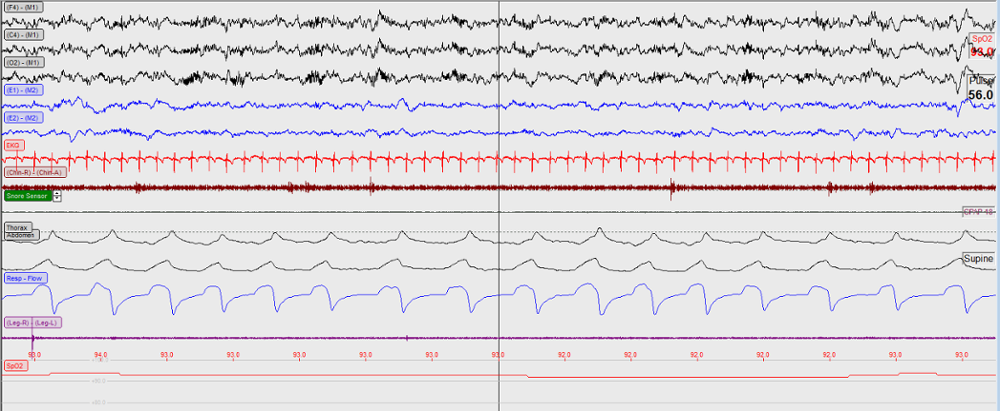

Figure 3: Sixty second epoch from titration portion of the study with 18 cm of continuous positive airway pressure using a nasal mask and chinstrap.
